Description

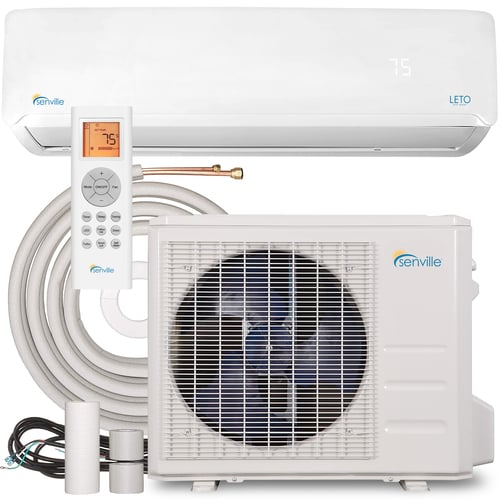

The Senville SENL-24CD/X is a 24000 BTU mini split air conditioner and heat pump that offers a versatile and affordable solution to cooling and heating your home or business.
17 SEER (HE) High Efficiency Air Conditioner & Heater

• With Built-In Heat Pump (Up to -15C / 5F) Suitable for Most Climates
• DC Inverter Technology for Minimal Energy Consumption (Up to 48% Savings per Year)
• Built-In De-humidification Function, Fan and Turbo Function for Complete Climate Control
• Recommended for rooms sized 1000-1250 sq. ft.
• 17 SEER AC & Heat Pump

The Senville LETO Series offers some of the highest efficiency in its class, with a SEER 17 efficiency rating. Enjoy the benefit of a cool climate controlled room, as well as efficient heating, that can be added to virtually any home, business or space that you need to cool and heat. An efficient, affordable and exceptionally designed mini split air conditioner with minimal audible noise, ensuring the most comfortable overall experience. Find out more about SEER Ratings here.

High Efficiency Inverter

Senville combines the affordability, efficiency and advanced Eco-friendly performance, with its Inverter technology. The results are drastic reduction of energy usage by up to 20%, ultimately making it one of the most efficient systems with Inverter Technology. Its technology like this that helps the ductless system to reach such high SEER ratings. Opt for a split system with Inverter Technology to ensure that you are minimizing your energy costs.

5 Year Warranty

All Senville models are backed by a comprehensive 5 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 5 year warranty offers coverage on the compressor and a 2 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 5 years, and we know that we are providing you with the highest quality product available.
Installation Kit + Accessories Included

Senville includes a standard 16 Ft. installation kit with all mini split models, which keeps your overall installation cost low. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up. Many inferior split units, may not include these parts, which eventually adds to your costs. Our Senville models come equipped and ready for installation from the moment your arrive at your door, with minimal additional cost.

Documentation and Certifications

• ETL Certified
• AHRI Certified (View Certificate)
• EnergyGuide (View EnergyGuide Label)
• Installation Manual (View Installation Manual)

Technical Specifications

• Model Number SENL-24CD/X
• Power Supply (Ph-V-Hz) 208-230V, 1Ph, 60Hz
• Cooling (Range) 24000 (6850-24500)
• Input (W) 2500
• Rated current A 11
• EER BTU/W 9.5
• SEER BTU/W 17
• Heating (Range) 24000 (7200-25000)
• Input (W) 2200
• Rated Current (A) 9.6
• COP W/W 3.2
• HSPF4 9.5
• HSPF5 8
• Minimum Circuit Ampacity (A) 20
• Max. Fuse (A) 30
• Indoor Dimensions (WxDxH) (in.) 42.52×8.90×13.19
• Indoor Air Flow (H/M/L) CFM 706/588/450
• Indoor Noise Level (H/M/L) dB 48/42.5/34
• Outdoor Noise Level (H/M/L) dB 58
• Outdoor Dimensions (WxDxH) (in.) 33.27×14.29×27.64
• Refrigerant Type R410A
• Refrigerant Pre-charge 25
• Connection Wiring 16AWG*4 Stranded, unshielded
• Thermostat Type Remote Control
• Warranty 2 Year (Parts) / 5 Year (Compressor)
• Application Area 1000-1250
