Description

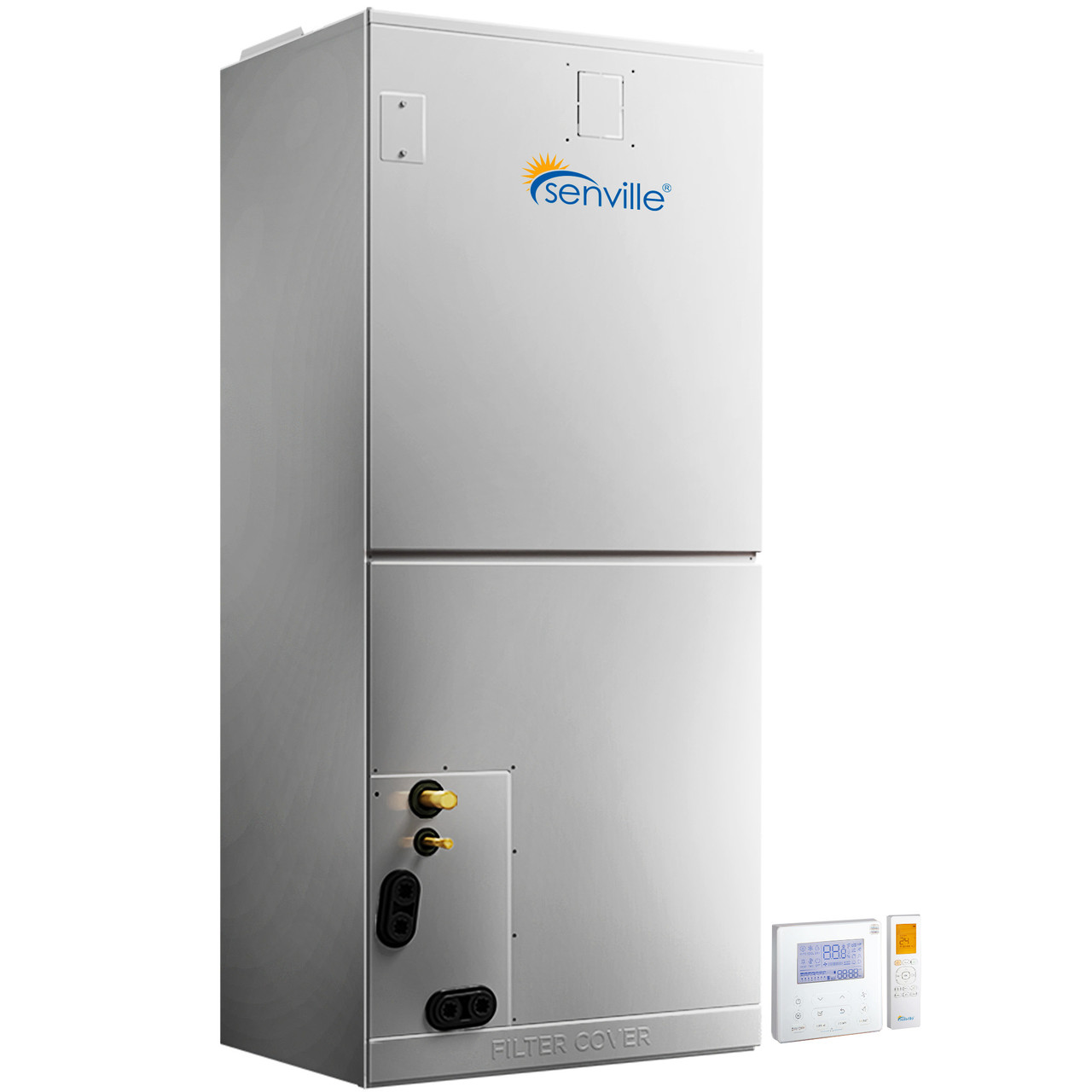

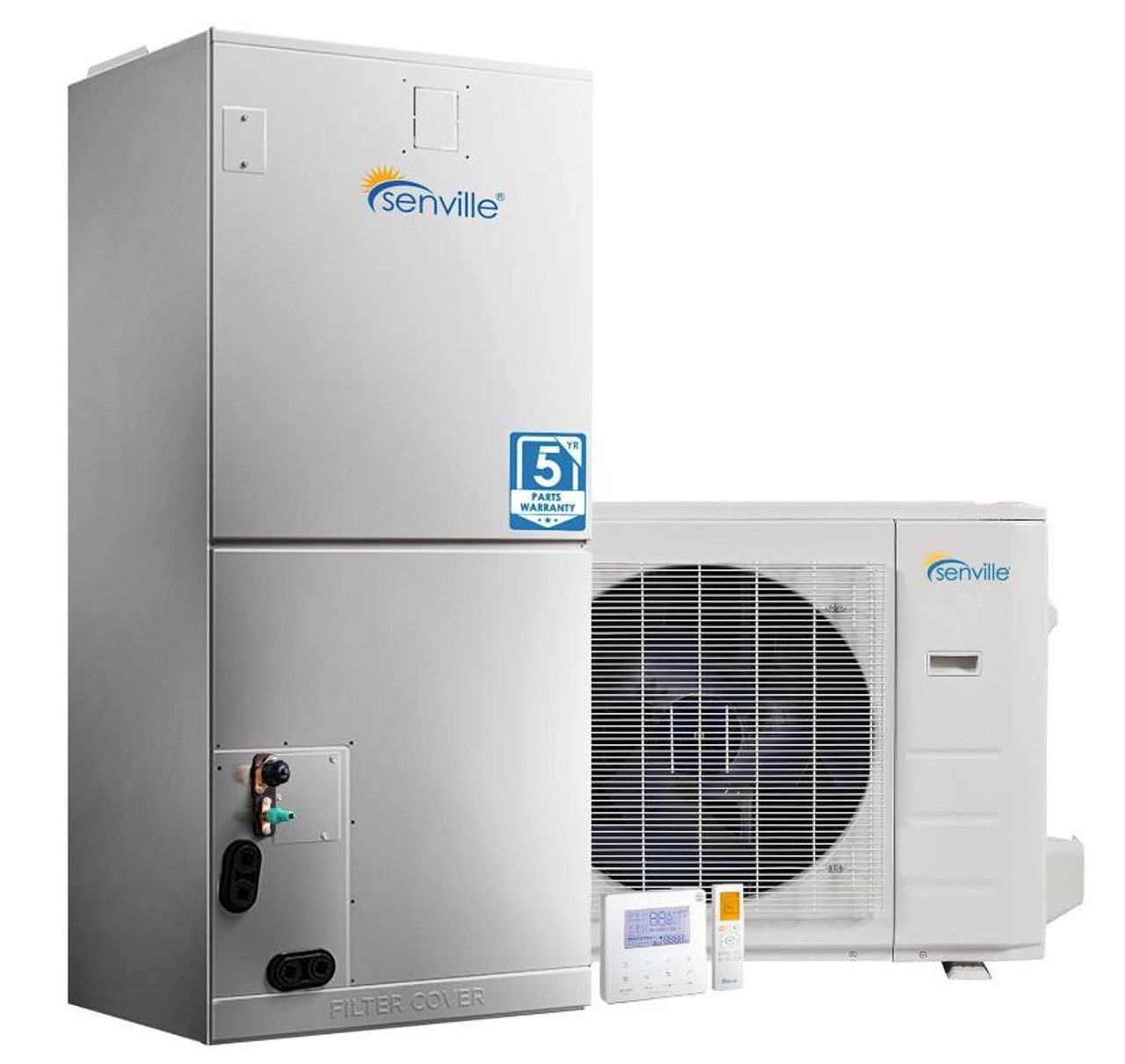

The Senville SENDC-48HF is a powerful 48,000 BTU central air conditioner and central heat pump system designed to transform your existing ducted setup into a high-efficiency, inverter-driven solution. This all-in-one central AC unit offers year-round comfort and performance backed by a 10-Year Manufacturer Warranty.

Key Benefits of the Senville SENDC-48HF Central AC System

• Inverter Technology – Maximizes energy savings and ensures fast, precise temperature control.
• All-in-One Cooling & Heating – Built-in central heat pump provides seamless year-round performance.
• Extreme Cold Operation – Performs efficiently in temperatures as low as –30 °C / –22 °F.
• Whisper-Quiet Operation – Ideal for bedrooms, offices, and shared living spaces.
• Installation Kit Included – Comes with a 16 ft pre-charged line set using R-454B refrigerant.
• Large-Space Cooling – Effectively cools areas up to 2,500 sq ft, perfect for homes and light commercial spaces.
• Extended Warranty – 10-Year Compressor Warranty and 5-Year Parts Warranty included.

Energy-Efficient Central Air Conditioner Technology

The Senville SENDC-48HF uses advanced variable-speed inverter technology to minimize energy consumption and maintain stable indoor temperatures. Unlike conventional units, it adjusts compressor speed dynamically, reducing power waste and improving comfort while lowering utility bills.

All-Season Comfort with Central Heat Pump Technology

Built for dependable heating and cooling, the SENDC-48HF provides efficient operation even in freezing conditions. Its reliable central heat pump function eliminates the need for secondary heat sources.

Ultra-Quiet Central AC Operation

Enjoy year-round comfort with whisper-quiet operation. Engineered with sound-dampening components, this central AC runs quietly, ensuring minimal disturbance in living or work environments.

Eco-Friendly Central Heating and Cooling

This system uses the next-generation R-454B refrigerant, featuring a lower global-warming potential (GWP) compared to legacy refrigerants — providing powerful performance with reduced environmental impact.

Advanced Diagnostics and Self-Cleaning

Equipped with self-cleaning mode, leak detection, and diagnostic alerts, the Senville SENDC-48HF simplifies maintenance while maintaining top performance and efficiency.

Reliable Performance Backed by Warranty

Built from high-grade components and designed for long-term reliability. Enjoy full peace of mind with a 10-Year Compressor Warranty and a 5-Year Parts Warranty.

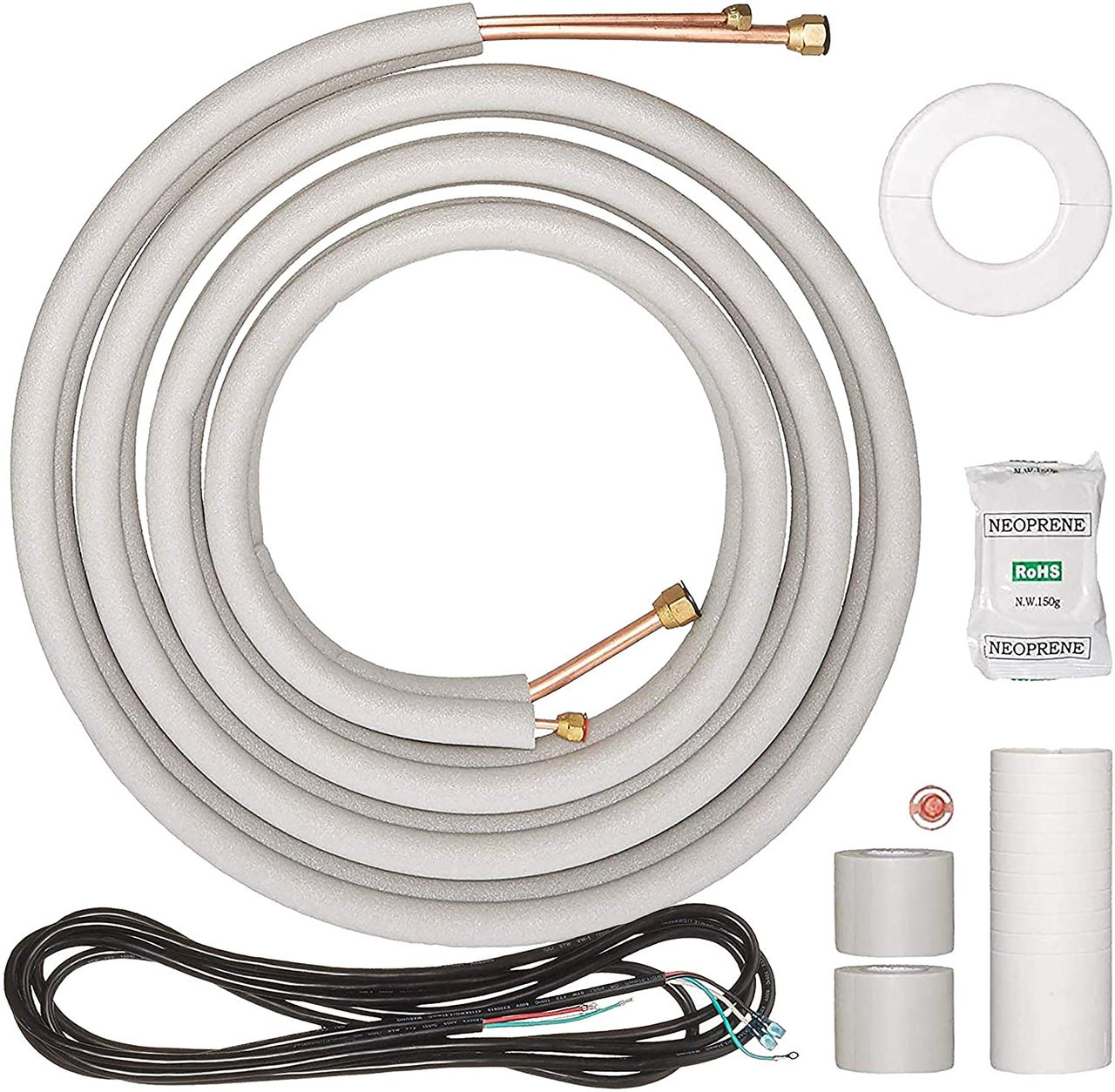

Installation Kit Included

Each unit ships ready for setup with a 16 ft installation kit, pre-charged with R-454B refrigerant.
Note: Professional installation is required for optimal performance. 50 ft communication cable not included.

Technical Specifications

• Model Number: SENDC-48HF
• Style: Central Air Conditioner with Heat Pump
• Power Supply: 208/230 V, 1 Ph, 60 Hz
• Voltage Range: 187 – 253 V
• SEER2: 16.5
• EER2: 10.5
• Cooling Capacity: 48 000 BTU
• Cooling Range: 15 600 – 51 000 BTU
• Cooling Input Range: 1 345 – 5 180 W
• Cooling Current Range: 6.4 – 22.9 A
• Heating Capacity: 50 000 BTU
• Heating Range: 15 500 – 57 300 BTU
• Heating Input Range: 1 045 – 5 200 W
• Heating Current Range: 5.7 – 23.1 A
• HSPF2-4: 9.5
• HSPF2-5: 8
• COP (W/W): 3.4
• Minimum Circuit Ampacity: 38 A
• Max Fuse: 40 A
• Indoor Air Flow (Turbo/H/M/L): 1601 / 1471 / 1283 / 1095 CFM
• Indoor Noise Level (H/M/L): 50 / 50 / 44 dB
• Indoor Dimensions (W×D×H): 21.02 × 24.49 × 52.99 in
• Indoor Weight: 162.92 lbs
• Moisture Removal: 3.85 L/h
• Outdoor Air Flow (Max): 3037 CFM
• Outdoor Noise Level: 65 dB
• Outdoor Dimensions (W×D×H): 38.58 × 16.34 × 38.39 in
• Outdoor Weight: 201.06 lbs
• Minimum Outdoor Heating Temperature: –22 °F / –30 °C
• Refrigerant Type / Charge: R-454B / 134.04 oz
• Thermostat Type: Wall Remote Thermostat
• Warranty: 10 Years Compressor / 5 Years Parts
