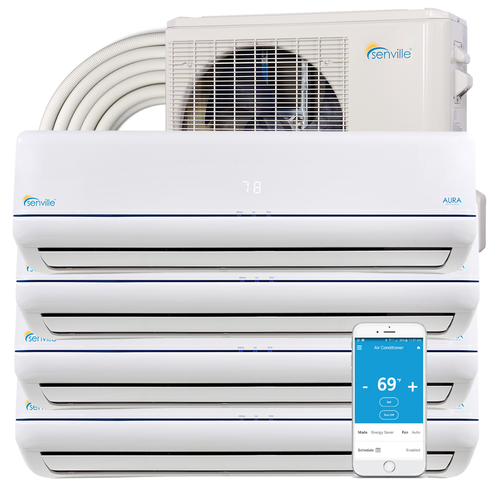

The Senville SENA-48HF/Q is a 48000 BTU quad zone ductless air conditioner and heat pump (Thermo Pump) with inverter. It is ENERGY STAR Certified and carries a 10 Year Manufacturer Warranty on compressor. It also offers the following features:

• 22.5 SEER (CEE Tier 3) Inverter Technology (Saves 56% per Year vs. 10 SEER)
• Air Conditioner with Arctic Heat Pump (Up to -30°C / -22°F). Great for Canadian Climates!
• WiFi Enabled (iOS & Android)
• Whisper Technology (Ultra Quiet)
• Silver Ion Filter (Anti-Microbial)
• Vertical Swing Function, Refrigerant Leak Detection
• Built-In De-humidification Function
• Follow Me Function (Remote with Built-In Thermostat)
• Self-Cleaning Mode
• PTC Heat Belt and Pan
• Bucket Free Outdoor Design
• Self Diagnosis System
• Low Ambient Cooling
• Energy Star Certified – could save upwards of 40% on your energy costs annually.

Alexa compatible

Control your unit with the Alexa app or with voice control using an Alexa enabled device. Set routines, control multiple rooms from anywhere remotely with any Android or iOS phone, via WiFi connection. Great for vacation homes or for better efficiency and temperature control. This model is great for anyone looking to cool and/or heat their home or business from a distance, while minimizing running costs.

Ultra High Efficient Heating and Cooling (up to -30°C/ 22°F)

Senville offers one of the most advanced heating and cooling systems in the world. The Ultra-Inverter Technology, allows the mini split systems to provide cooling and heating at up to -30°C/ -22°F, with up to 75% efficiency, which means you won’t experience any additional cost overages on your energy as temperatures go lower.

Diagnostics & Leak Detection System

Also included on this ductless system are a variety of features including self-cleaning, leak detection, and diagnostic display, all designed to ensure a proper running system that will last a lifetime. Enjoy peace of mind, knowing that your air conditioner will warn you of any potential problems.

Ultra-High Efficiency Inverter

Senville has long manufactured their air conditioners with an emphasis on energy efficiency and affordability. Technology like its inverter compressor, results in drastic reduction of energy usage, ultimately making it one of the most efficient systems with Inverter Technology.

Manufacturer’s Warranty

Senville Aura models (Q series) are now backed by a comprehensive 10 year warranty on compressors. All warranty claims are processed by the Canadian Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. The warranty also offers a 5 year warranty on parts.

Installation Kit & Accessories Included

Senville air conditioners include a complimentary 16′  installation kit, designed to ease installation as well as minimize installation costs. These units come pre-charged with R410A refrigerant and include the necessary piping for installation and hook up. **Professional installation and Line-set vacuuming required**

Documentation and Certifications

• ENERGY STAR Certified
• UL Certified
• Energy Guide
• AHRI Certified
• Installation Manual (View Installation Manual)

Technical Specifications

• Model Number: SENA-48HF-MOQ
•  Power Supply:208/230V, 1Ph, 60Hz
• Cooling (Range): 48000
• Voltage Range: 187-253 V
• EER: 12.5
• SEER: 22.4
• Heating (Range): 48000
• COP W/W: 3.6
• HSPF4: 10.2
• HSPF5: 8.3
• Outdoor Operating Temp: -30/-22°C
• Minimum Circuit Ampacity: 30 A
• Max. Fuse: 45 A
• Outdoor Dimensions (W x D x H) (in.): 37.48 x 16.34 x 52.48″
• Indoor Dimensions (W x D x H) (in.): 33.40 x 9.18 x 11.76″
• Packing: 43.11 x 19.49 x 58.27″
• Net/Gross Weight: 101.5/115.7 Kg.
• Net/Gross Weight: 223.77/255.07 lbs.
• Refrigerant Type: R410A/162.3
• Refrigerant Pre-charge: 125Ft.
• Additional Charge: 0.32 for each Ft Oz
• Max. Combined Length: 262 Ft
• Max. Length Per Indoor Unit: 115 Ft
• Max. Height Difference Between Indoor and Outdoor unit: 49 Ft
